KOMODO

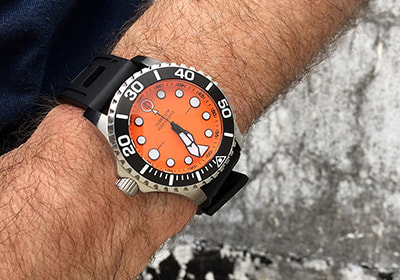

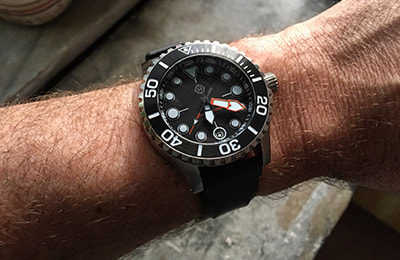

Tucked among the Lesser Sunda Islands of Indonesia, the remote Komodo island is home to the famed Komodo dragon, while the tropical waters surrounding the island are host to some of the richest marine biodiversity on the planet.  Begging to explore these rich waters, the HELM Komodo features a 316L stainless steel case and bracelet, automatic movement, screw-down caseback and crown, domed sapphire crystal, unidirectional bezel, highly legible dial and a 300 meter depth rating. With a compact case diameter of 40mm, the ISO 6425 compliant Komodo is the perfect size to strap on for any far-flung adventure.

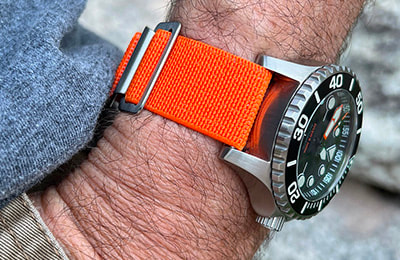

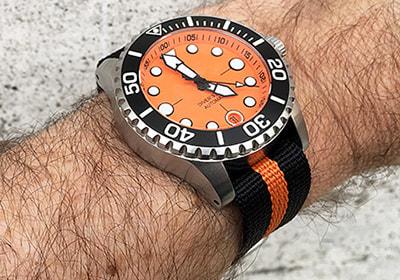

Available with three dial variations and several aftermarket bezel options, the Komodo also includes the NS1 Nylon Strap―an excellent option in the water and a casual, lighter weight alternative to the stainless bracelet. And with a standard 20mm lug width, the Komodo can be dressed up or down with limitless aftermarket straps, including our own NS2 and NS3 nylon straps, RS1 and RS2 rubber straps and the SS1 or SS2 stainless bracelets.


   03AR1                                                         03AR3                                                         03AR4

See more of the Komodo here.

SPECIFICATIONS:

WHAT YOU GET:
  • Komodo 300m Automatic Watch
  • SS3 Stainless Steel Bracelet
  • One NS1 Nylon Strap (your choice of 9 colors)

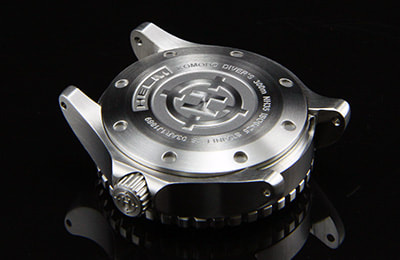

CASE:
  • Brushed 316L Stainless Steel
  • Integrated Crown Guards

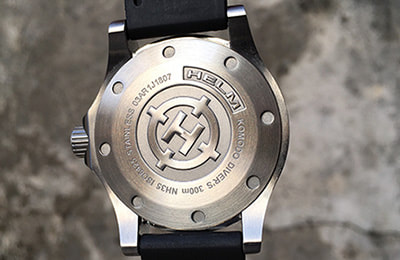

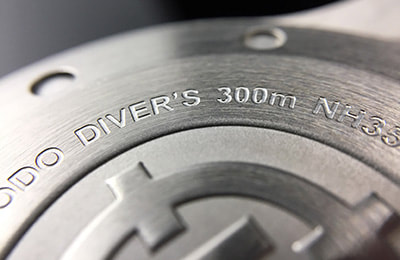

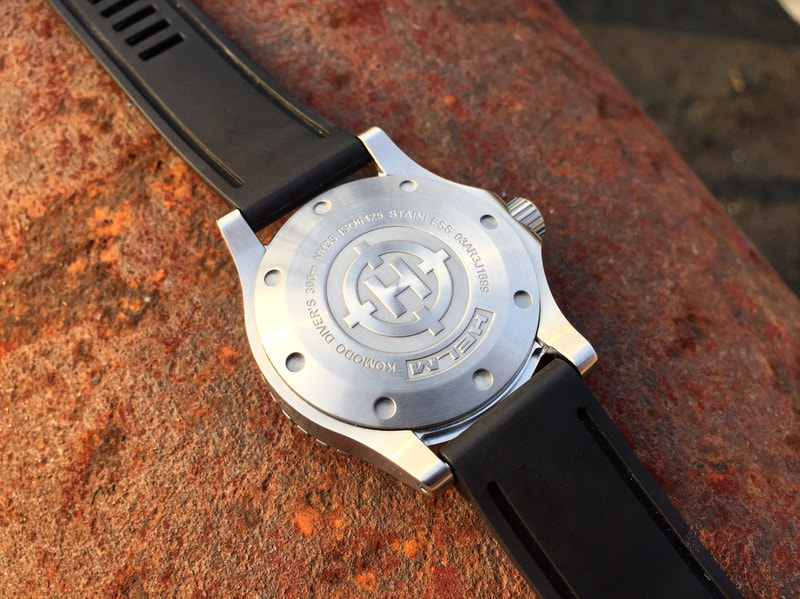

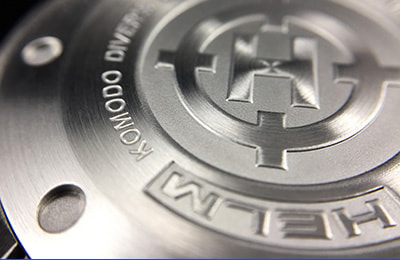

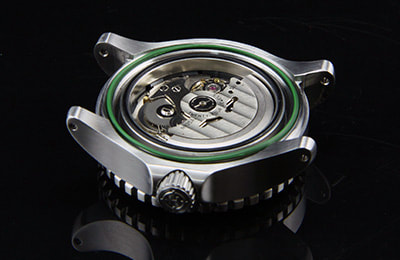

  • Screw Down Caseback
  • Diameter:
    12H to 6H:  40mm

    9H to 3H (with crown):  45mm
  • Lug to Lug:  47mm
  • Lug Width:  20mm
  • Height:  15.5mm (including domed crystal)

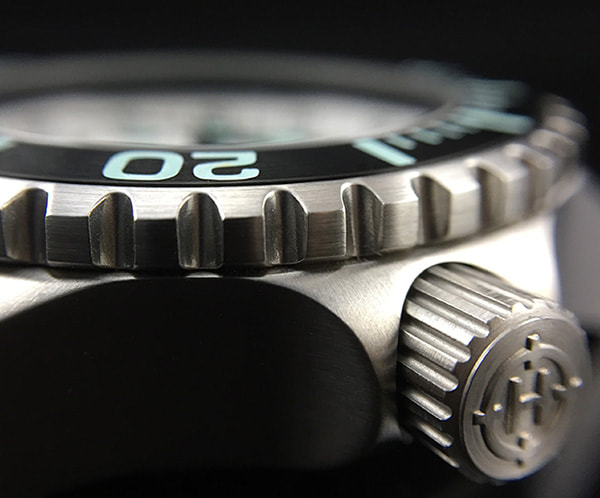

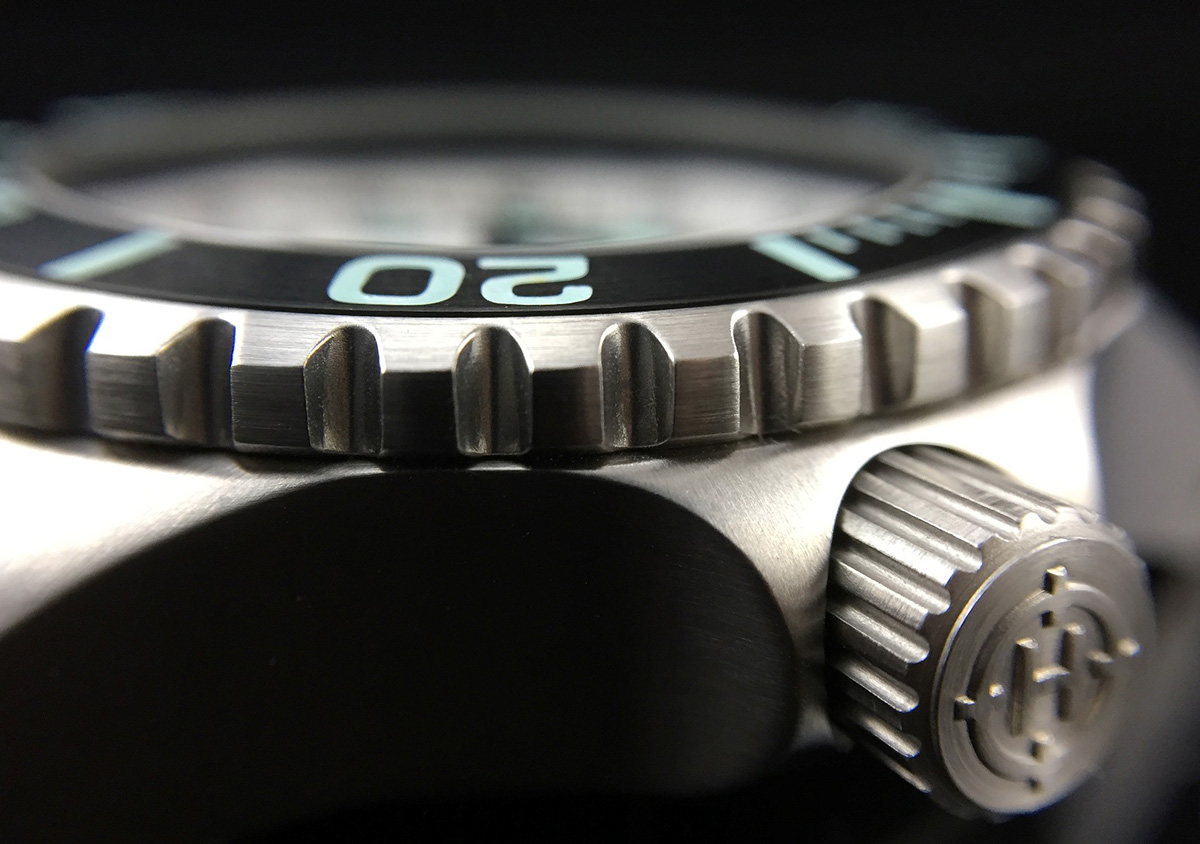

BEZEL:
  • 316L Stainless Steel
  • 120-Click, Unidirectional Rotation
  • Diameter:  40mm
  • Removable / Interchangeable:  Yes
  • Insert:  Stainless Steel, PVD Black, Fully Lumed

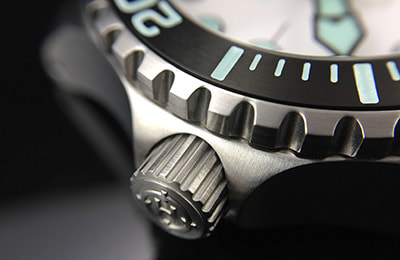

CROWN:

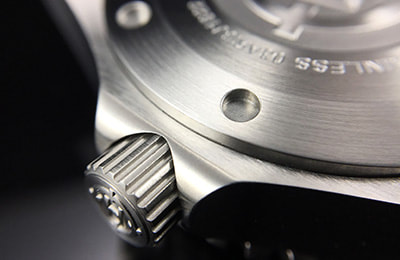

  • Brushed 316L Stainless Steel
  • Screw Down
  • Location:  3 o'clock
  • Diameter:  7mm

MOVEMENT:

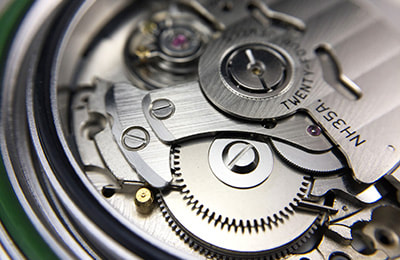

  • Seiko Instruments NH35 (Automatic Mechanical)
  • Hacking and Manual Winding Functions
  • Accuracy:  -20 ~ +40 seconds/day
  • Beats Per Hour:  21,600
  • 24 Jewels
  • Power Reserve:  40 Hours

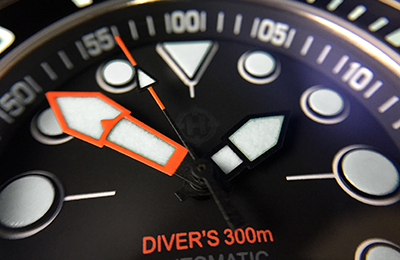

DIAL & HANDS:

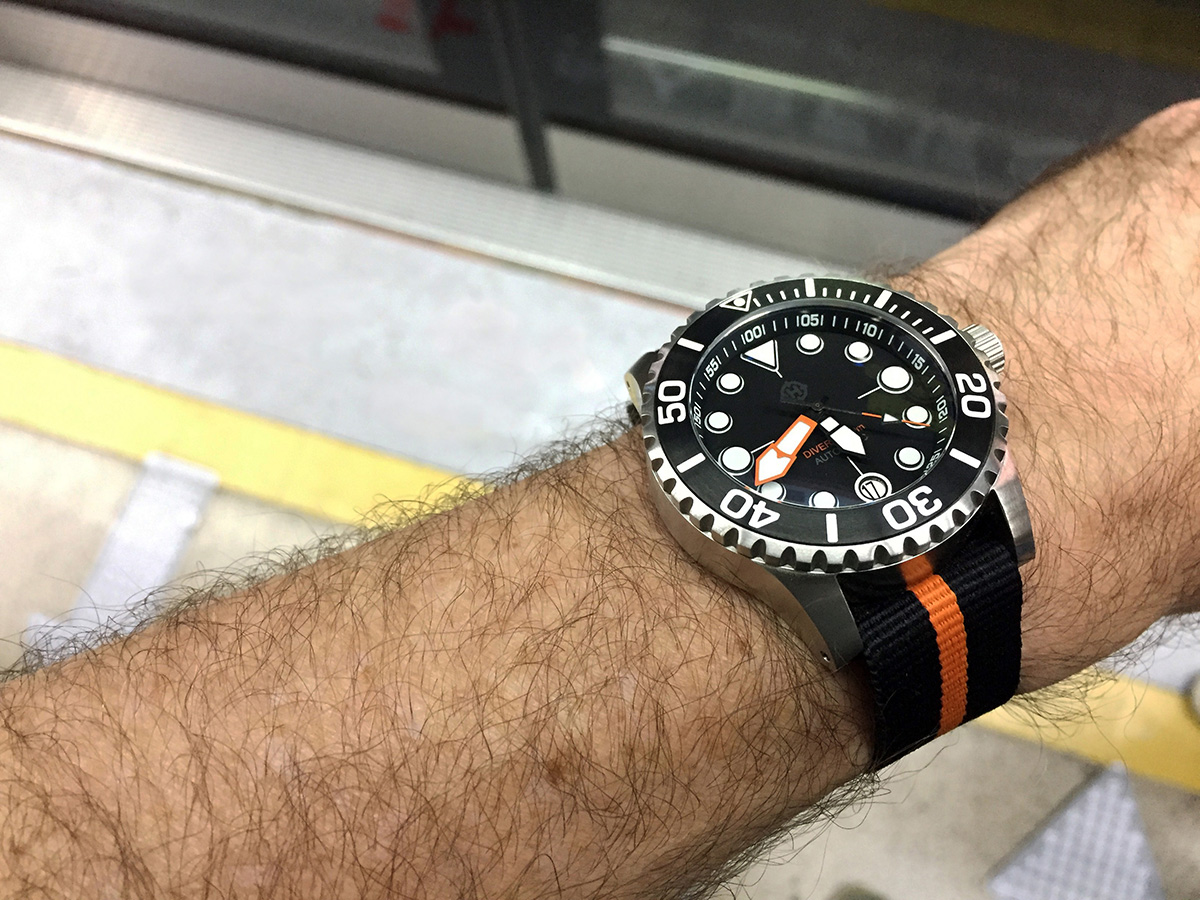

  • 03AR1:
    Dial:
    Matte Black with BGW9 Lume
    Hands: BGW9 Lume

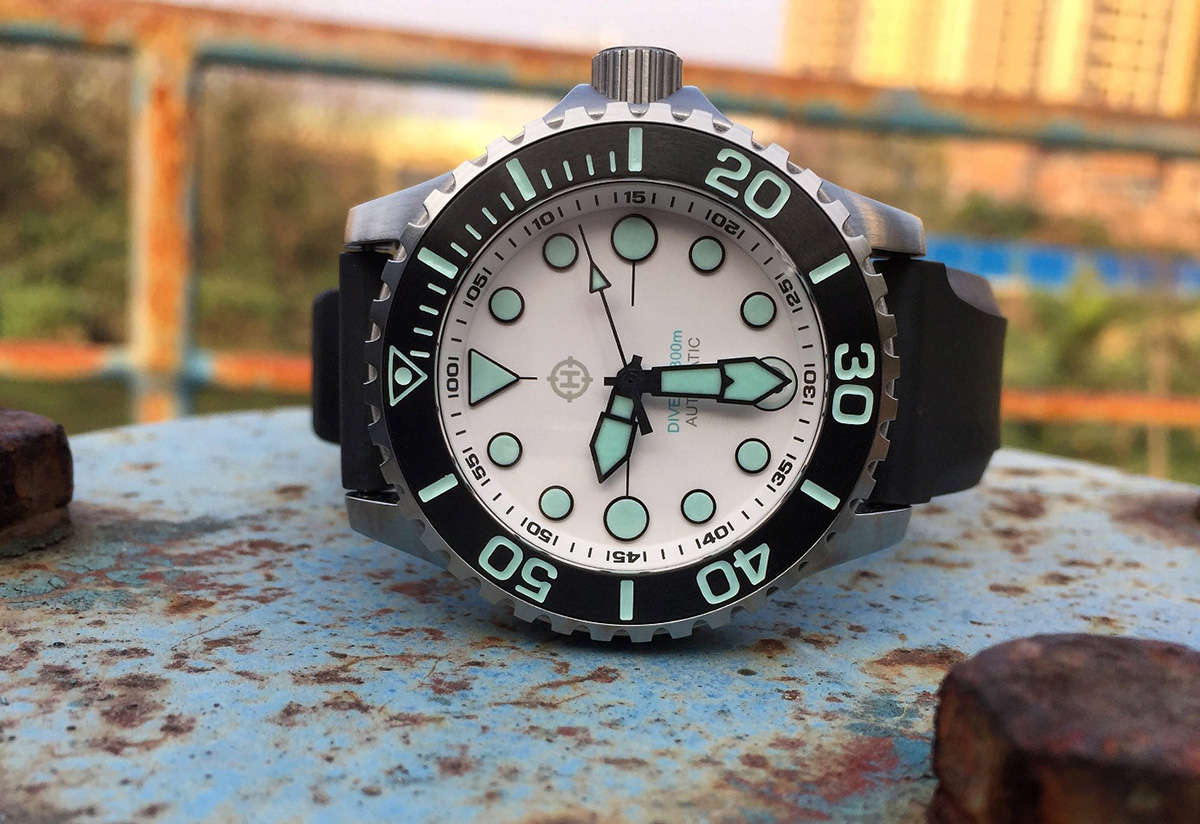

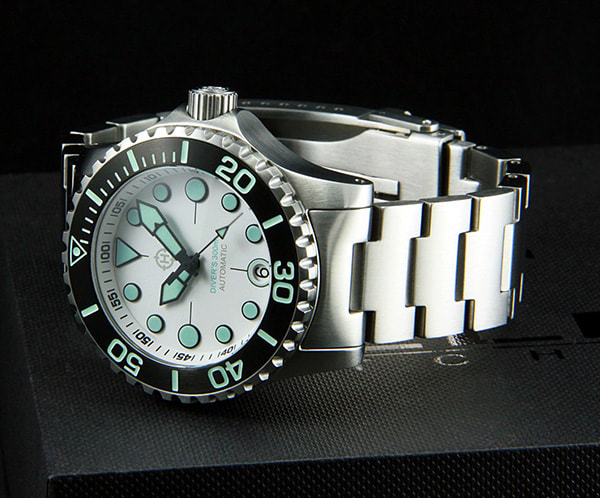

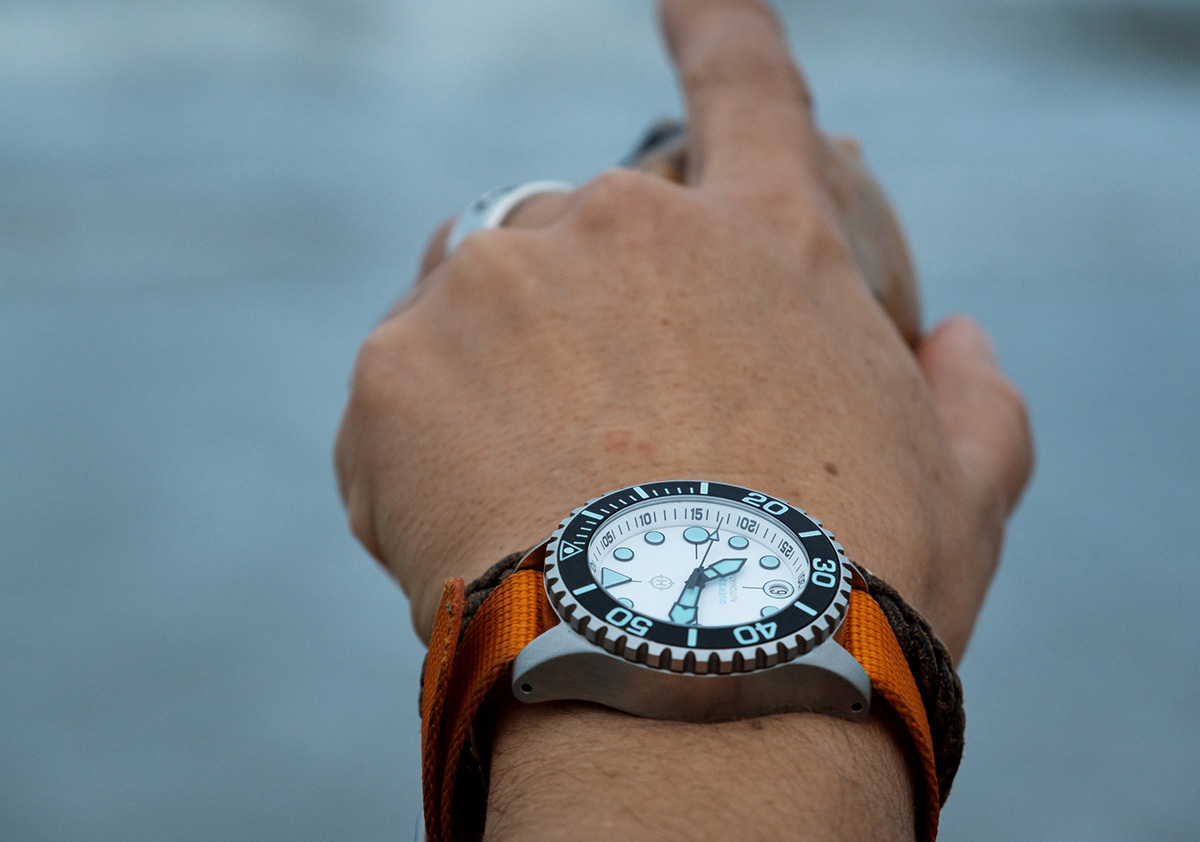

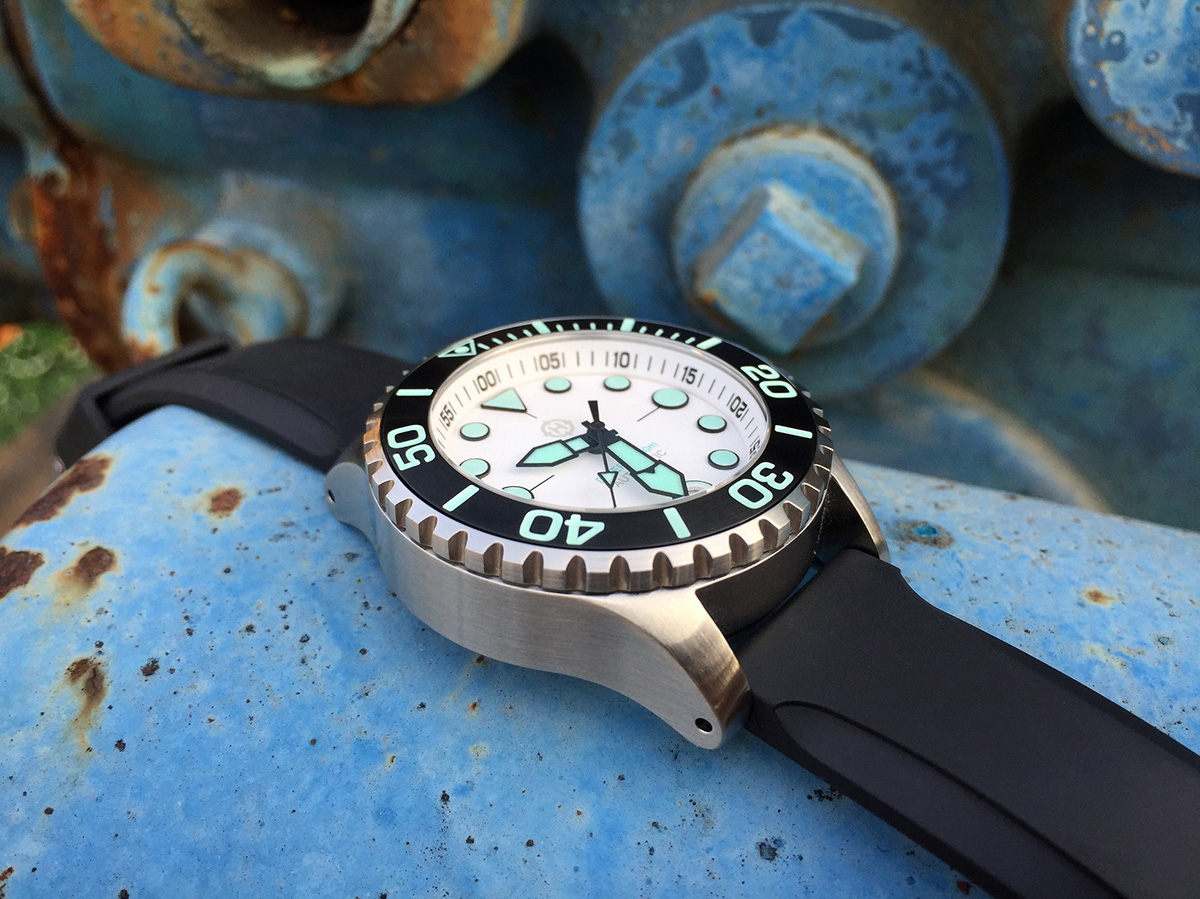

  • 03AR3:
    Dial: Matte White with Light Blue
    Hands: Light Blue Lume

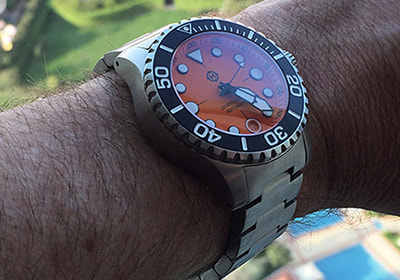

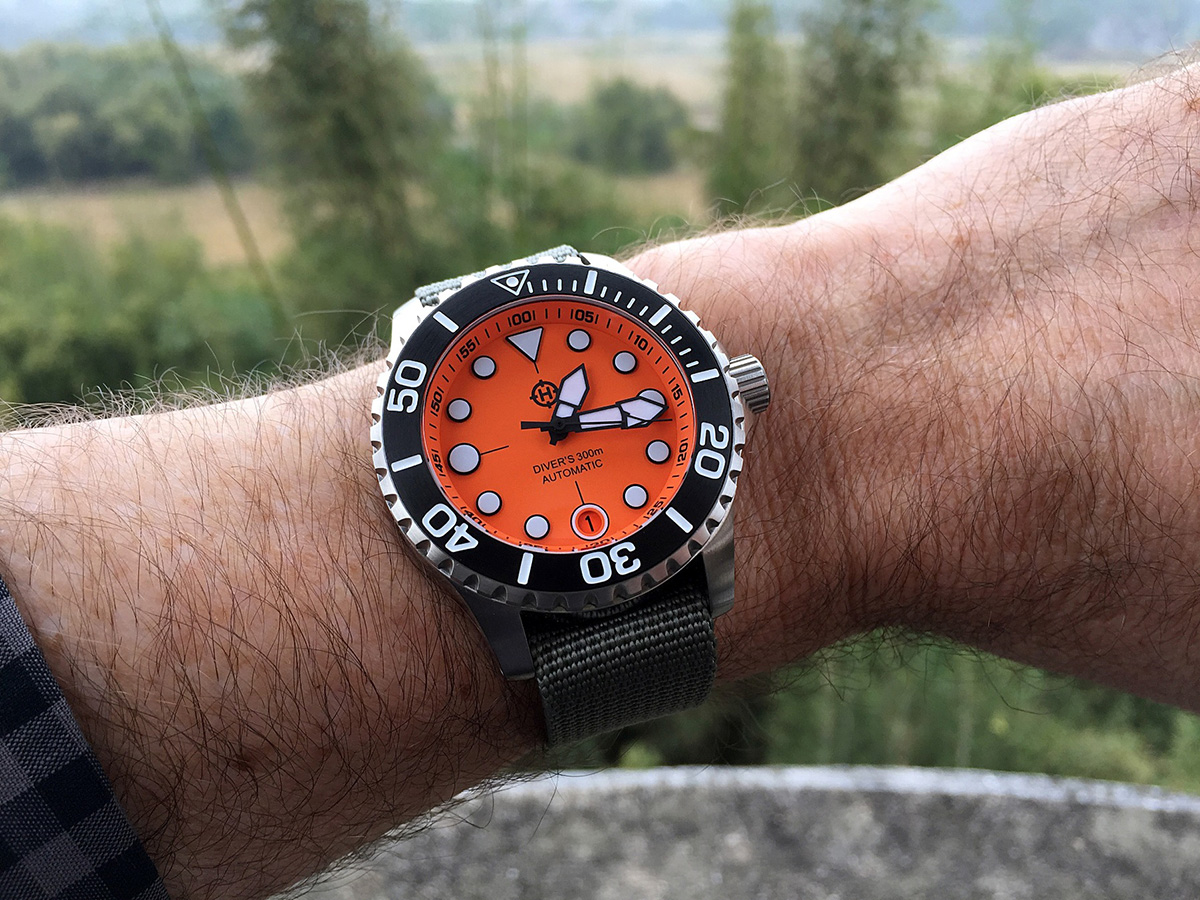

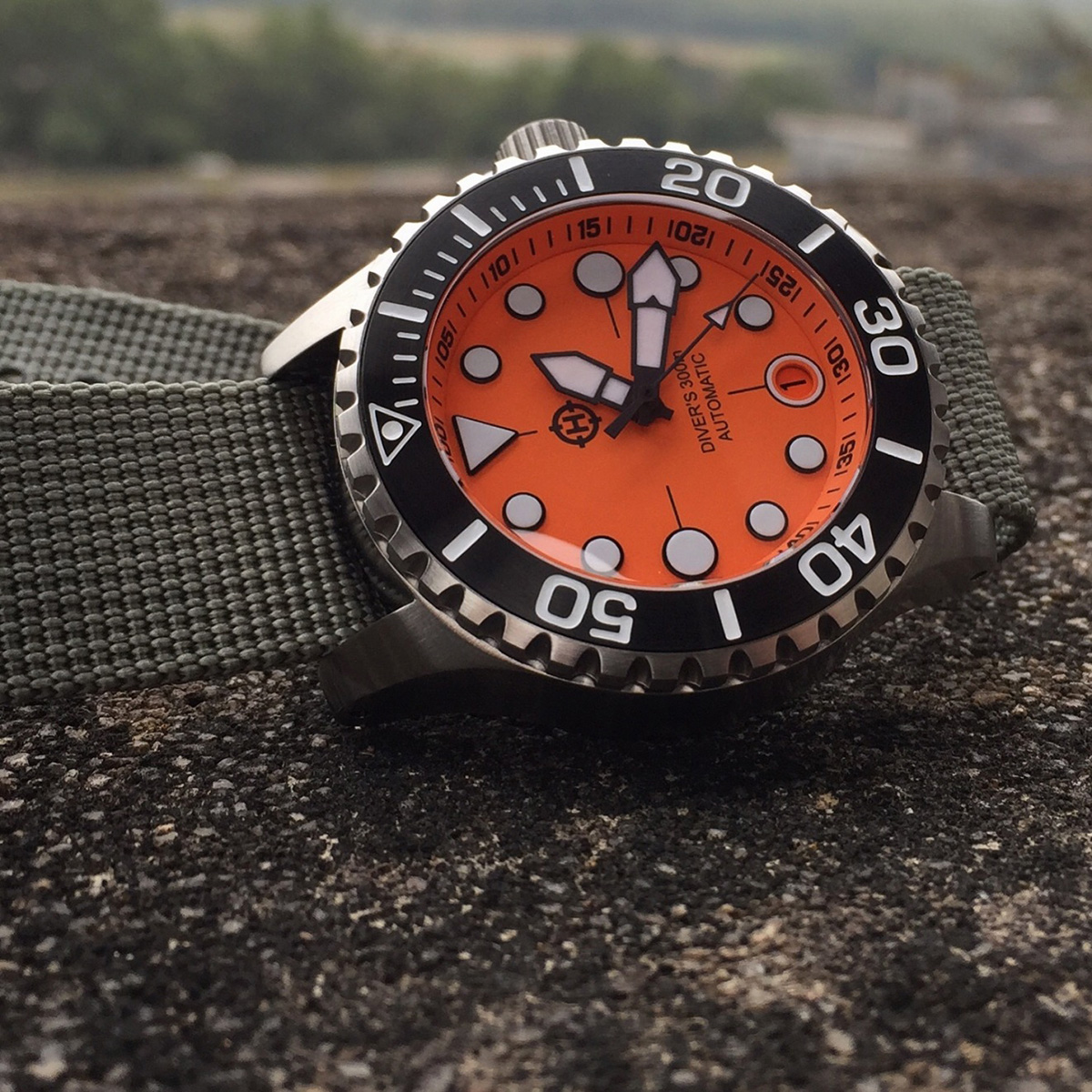

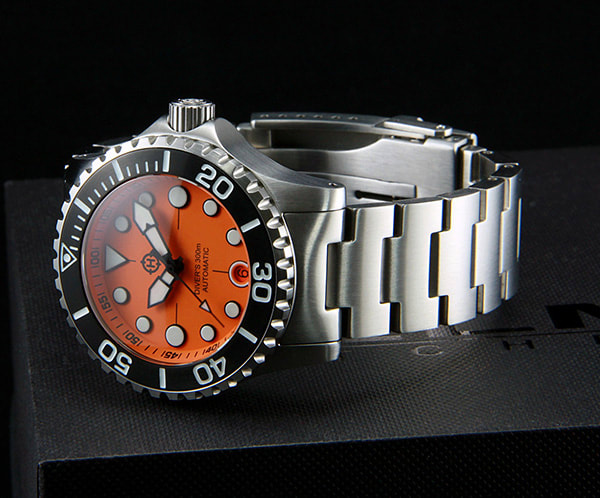

  • 03AR4:

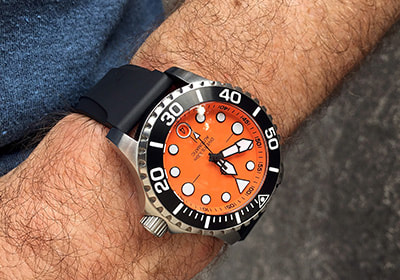

    Dial:  Matte Orange with BGW9 Lume
    Hands: BGW9 Lume

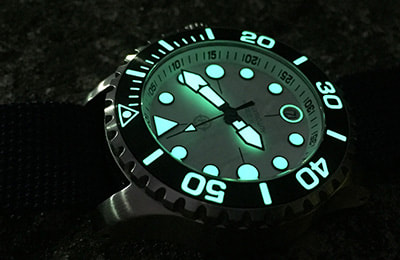

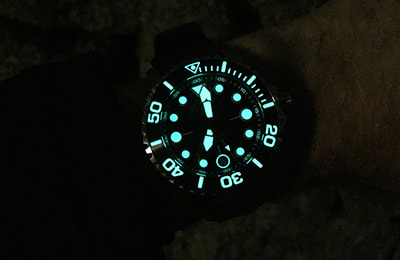

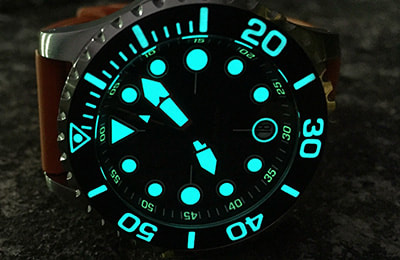

  • BGW9 Lume = Blue Afterglow
  • Light Blue Lume = Green Afterglow
  • Date Window:  6 o'clock

CRYSTAL:
  • Double -Domed Sapphire with Colorless Internal
    Anti-Reflective Coating

BAND:
  • Brushed Stainless Steel Bracelet and FC1 Clasp
    (20mm at Case and 20mm at Clasp)

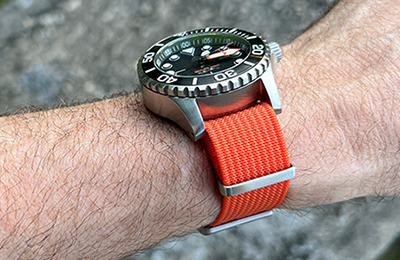

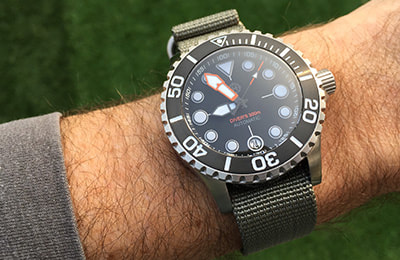

  • NS1 Nylon Strap with Stainless Steel Hardware

WATER RESISTANCE:
  • 300m / 30atm / 990ft
  • Tested in accordance with ISO 6425:2018

WEIGHT:
  • With Stainless Bracelet (at full length): 215 grams
  • With NS1 Nylon Strap:  110 grams

ACCESSORIES:

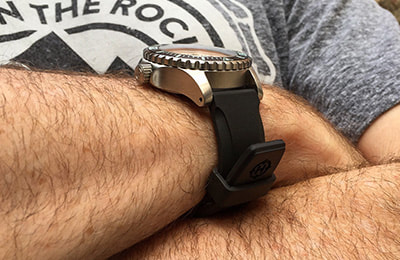

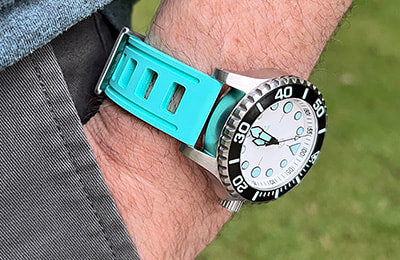

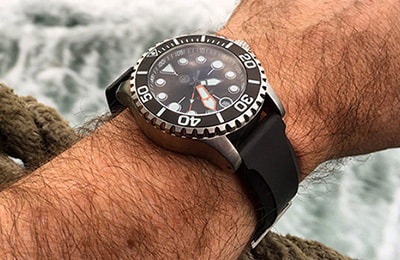

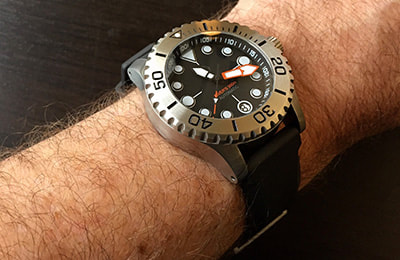

  • The rubber straps and alternate bezels pictured in some photos at left, as well as the NS2 and NS3 nylon straps, are available separately and at a discount when purchased with a watch.

Manual:

Download Manual
File Size: 2678 kb
File Type: pdf
Download File


US$295.00 + Shipping

Thanks for your interest in the Komodo! As with our other watches, the Komodo is sold on a waiting list basis to help us manage sales volume. To join the waiting list, please
click here or submit the form below.

When we reach your number on the list, we'll contact you
with instructions to complete the purchase.

If there are more than a thousand customers on the list, we also conduct regular "lottery" sales during which we draw names at random from the entire waiting list.
