MIYAKO

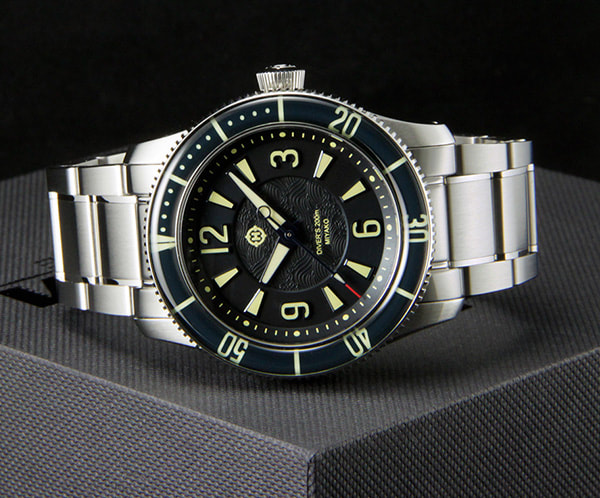

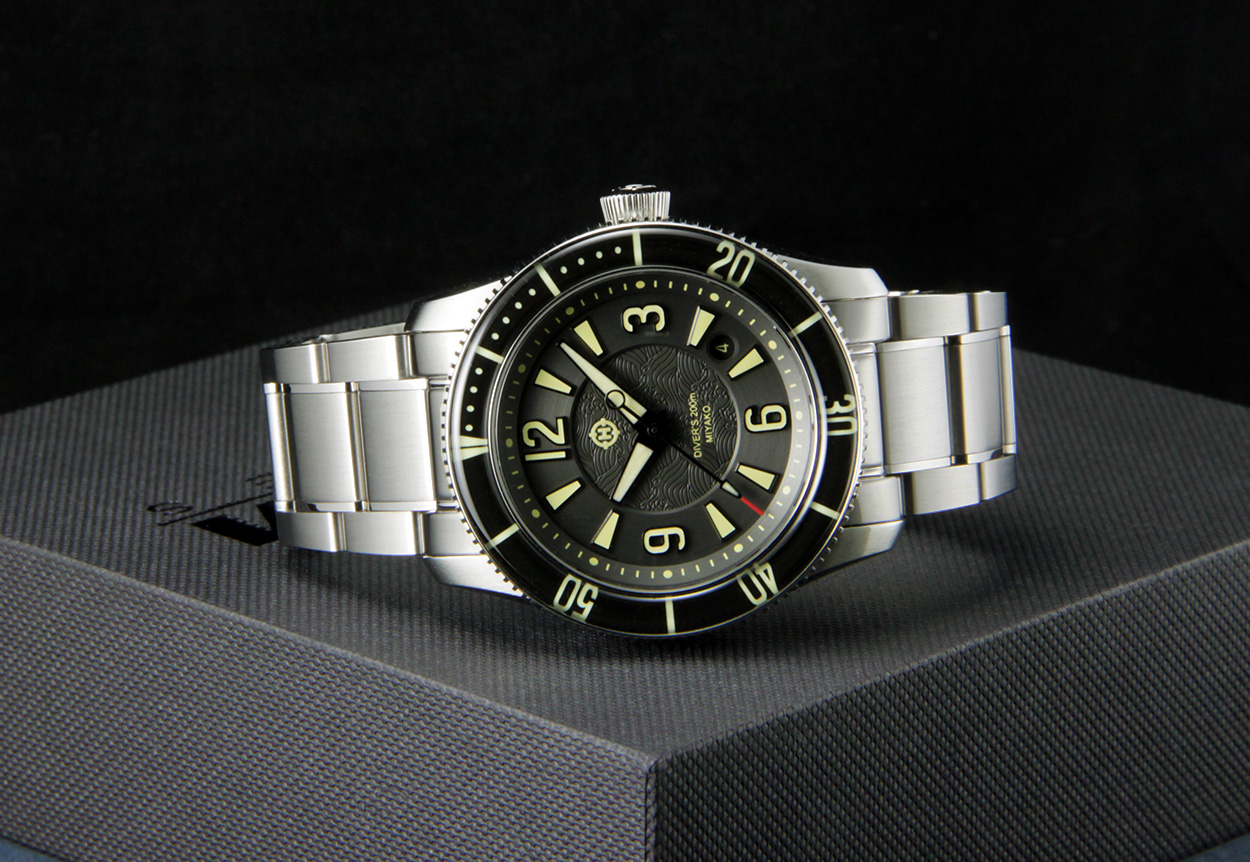

Located off the northeastern coast of Taiwan, the Japanese island of Miyako is ringed with white sand beaches and surrounded by crystal clear blue-green waters ideal for snorkeling and freediving. This idyllic Japanese island seemed the perfect inspiration for the HELM Miyako, which is fitted with the venerable Miyota 9015 or 9039 movement. The watch also features a 316L stainless steel case and bracelet, screw-down caseback and crown, domed sapphire crystal and bezel, highly legible dial and a 200m depth rating. With a case diameter of 40mm, the ISO 6425 compliant Miyako is perfectly sized for any adventure, in or out of the water.

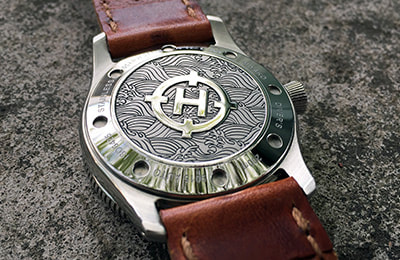

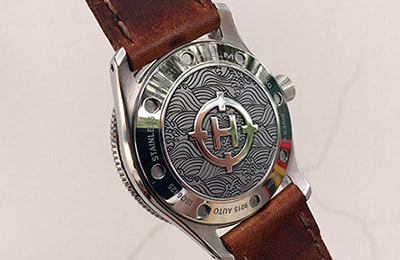

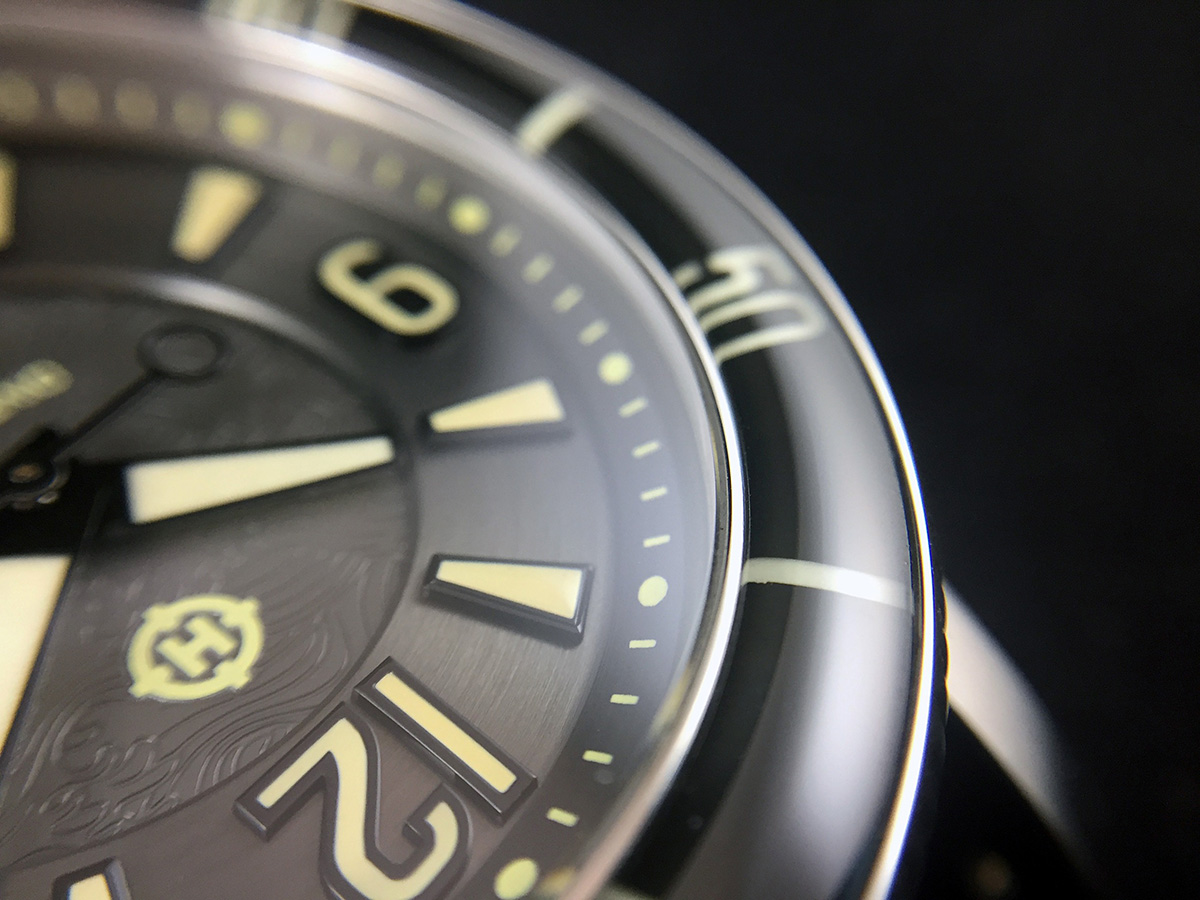

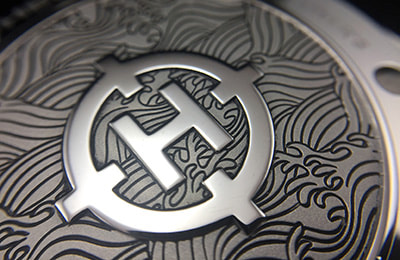

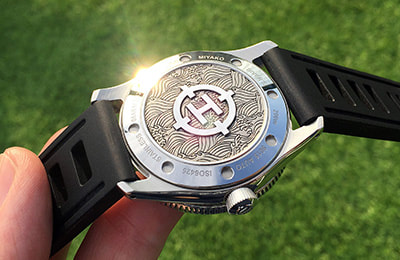

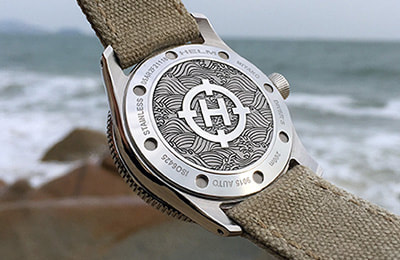

Traditional Japanese patterns, or wagara, are often based on patterns found in nature, and are widely used on textiles, ceramics and other everyday objects in Japan. The seigaiha pattern, which literally translates to “blue ocean waves” and was originally used to depict water on maps, evokes the power and tranquillity of the sea, and symbolizes waves of good fortune, prosperity and enduring peace. Named for a Japanese island and designed for a life beneath the waves, the Miyako is adorned with our own seigaiha pattern to symbolize the adventure, abundance and harmony that the ocean represents.

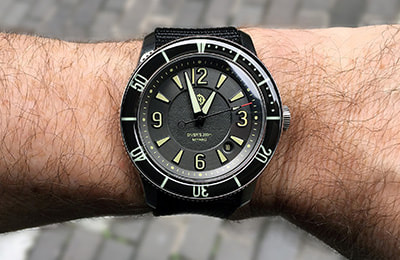

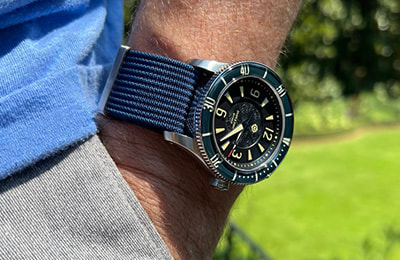

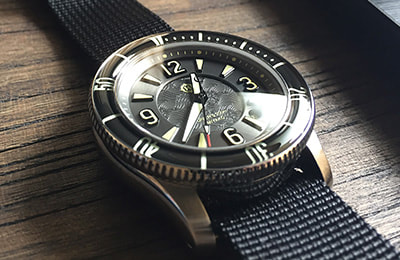

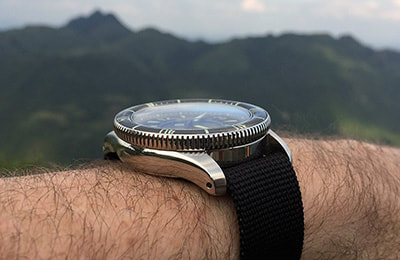

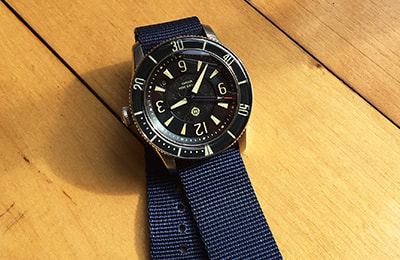

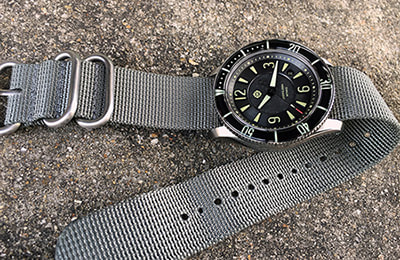

Available with a gray or navy blue dial and date or no-date variations, the Miyako also includes the NS2 Nylon Strap―an excellent option in the water and a casual, lighter weight alternative to the included stainless bracelet. With a standard 22mm lug width, the Miyako can also be dressed down with limitless aftermarket straps, including our own NS1 and NS3 nylon straps, RS1 and RS2 rubber straps, the CS1 canvas strap or the LS1 and LS2 leather straps.

    05AR1                                                        05AR3
    05AR2                                                        05AR4
See more of the Miyako here.
SPECIFICATIONS:

WHAT YOU GET:
  • Miyako 200m Automatic Watch

CASE:
  • Polished 316L Stainless Steel
  • Screw Down Caseback
  • Diameter:
    12H to 6H:  40mm
    9H to 3H (with crown):  44.5mm
  • Bezel Diameter:  41.6mm
  • Lug to Lug:  47mm
  • Lug Width:  22mm
  • Height:  13.75mm (including domed crystal)

BEZEL:
  • 316L Stainless Steel with Domed Sapphire Insert

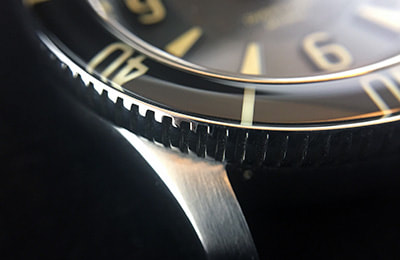

  • 120-Click, Unidirectional Rotation
  • Diameter:  41.6 mm
  • Removable:  Yes

CROWN:
  • Polished 316L Stainless Steel
  • Screw Down
  • Location:  3 o'clock
  • Diameter:  7 mm

MOVEMENT:
  • Miyota 9015 (Date) or 9039 (No Date)
  • Hacking and Manual Winding Functions
  • Accuracy:  -10 ~ +30 seconds/day
  • Beats Per Hour:  28,800
  • 24 Jewels
  • Power Reserve:  42 Hours

DIAL & HANDS:

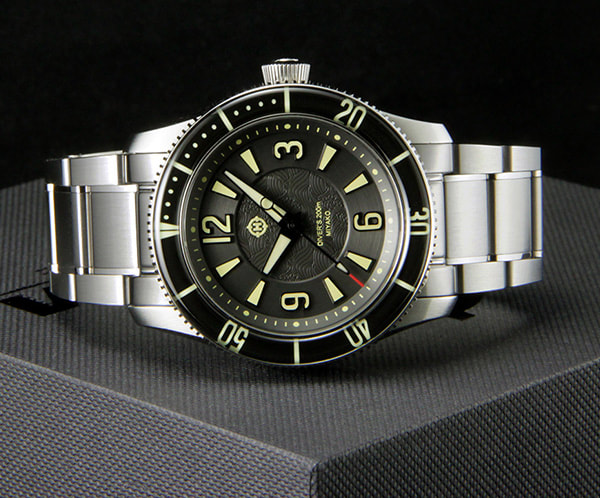

  • 05AR1, 05AR3:

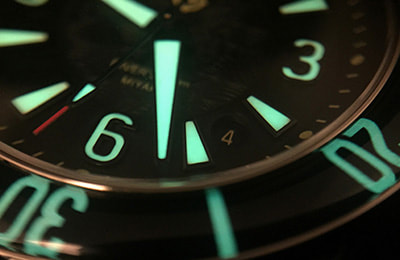

    Dial:  Slate Gray with Light Old Radium Lume
    Hands: Black, with Light Old Radium Lume

  • 05AR2, 05AR4:

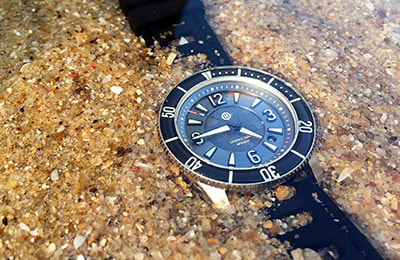

    Dial: Navy Blue with Light Old Radium Lume
    Hands: Blue, with Light Old Radium Lume

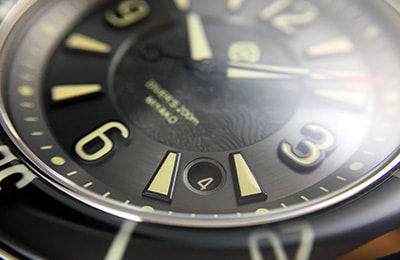

  • Date Window at  4:30 (Date Variations Only)

CRYSTAL:
  • Double -Domed Sapphire with Colorless Internal
    Anti-Reflective Coating

BAND:

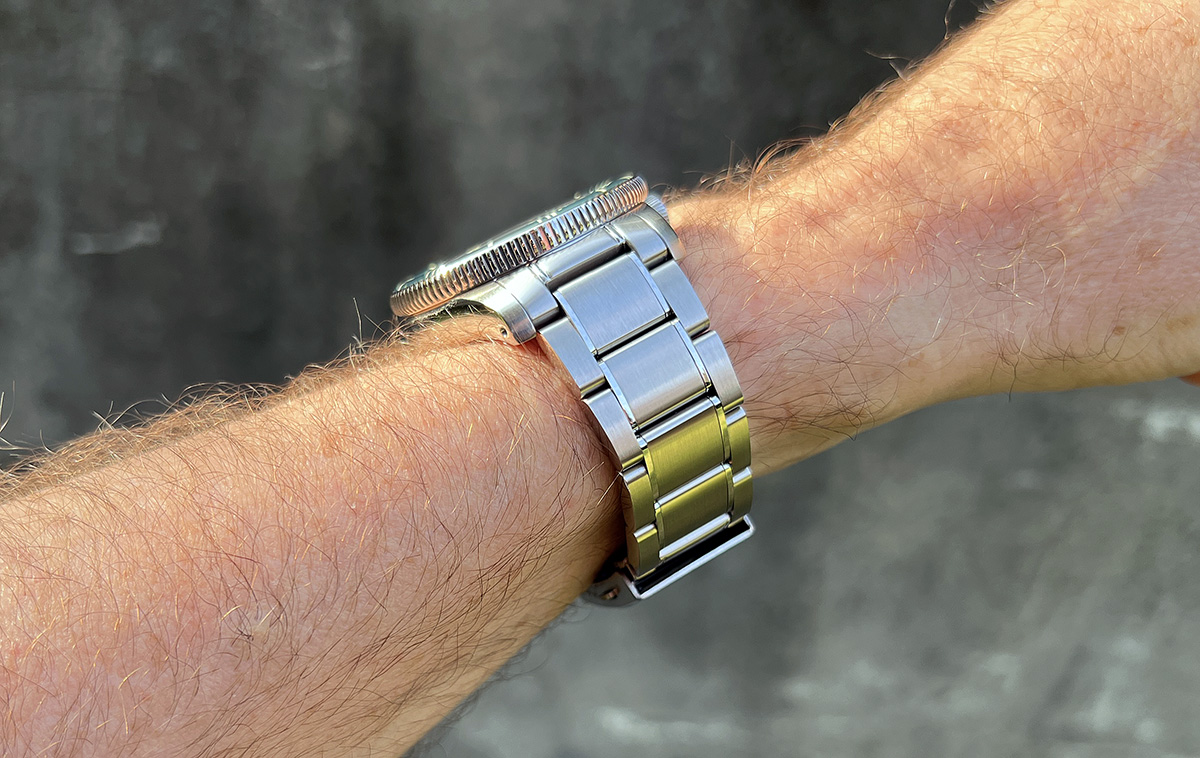

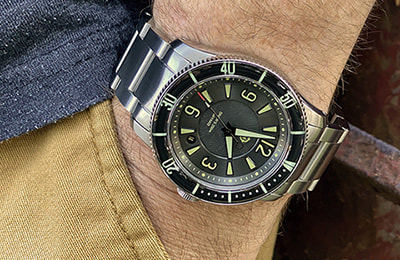

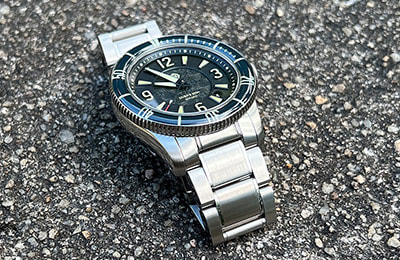

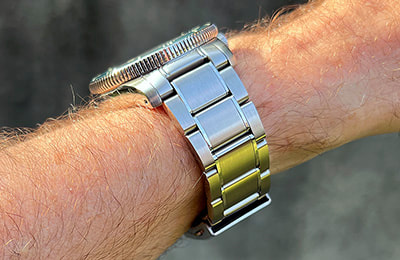

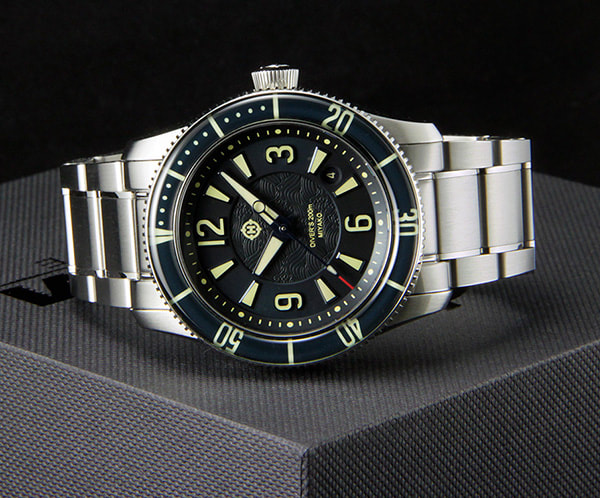

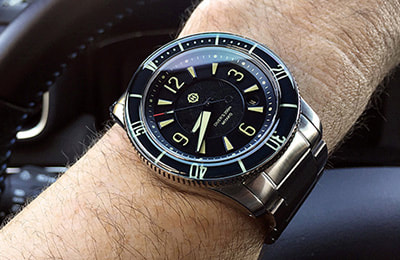

  • Brushed + Polished Stainless Bracelet and FC3 Clasp
    (Tapers from 22mm to 20mm at Clasp)

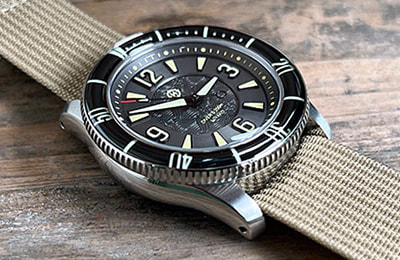

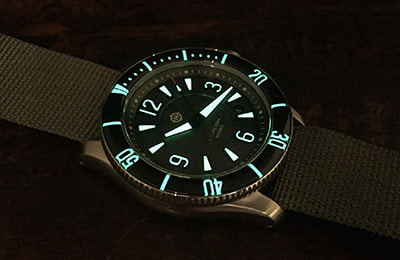

  • NS2 Nylon Strap with Stainless Steel Hardware

WATER RESISTANCE:
WEIGHT:
  • With Stainless Bracelet (at full length): 195 grams
  • With NS2 Nylon Strap:  110 grams

ACCESSORIES:

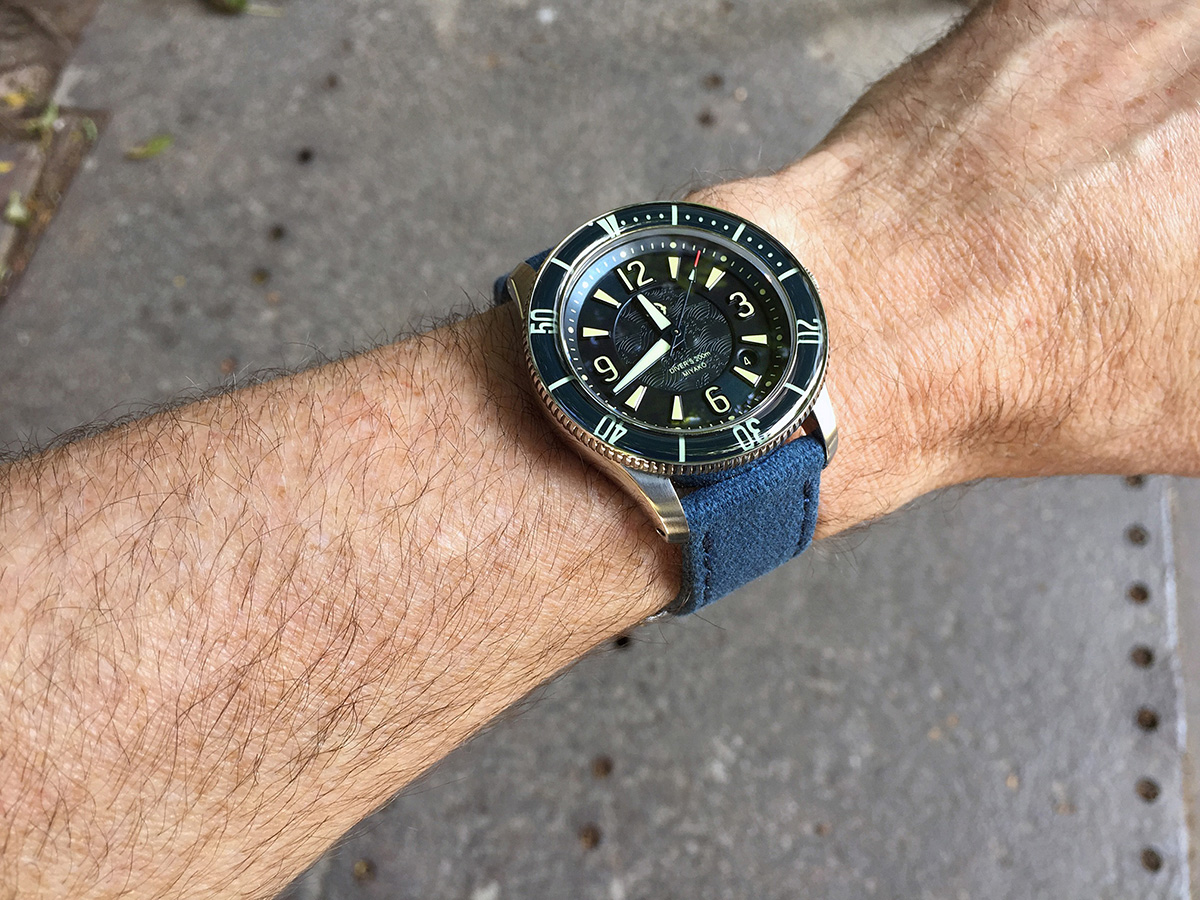

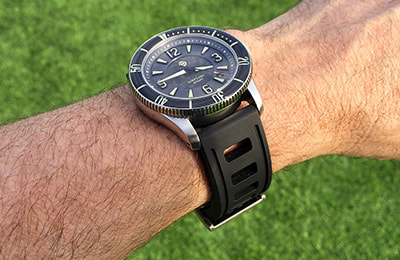

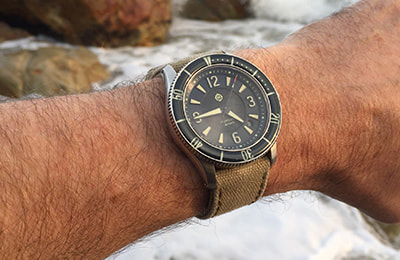

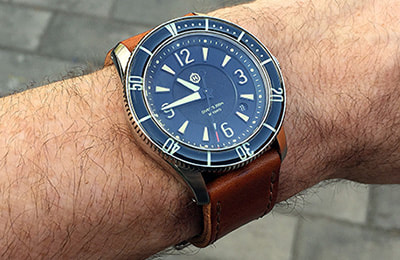

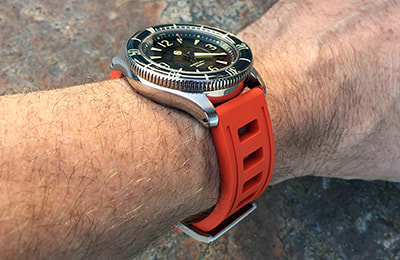

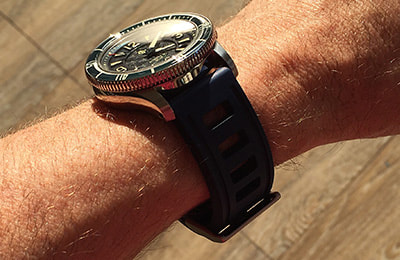

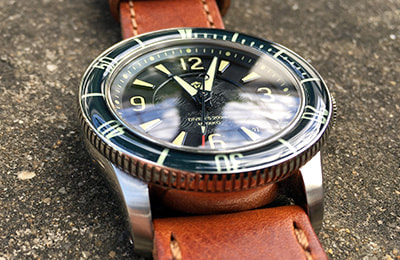

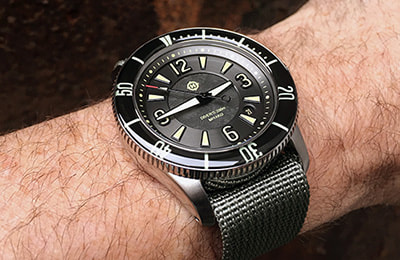

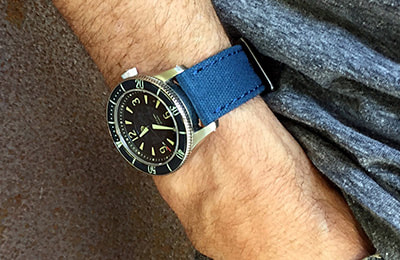

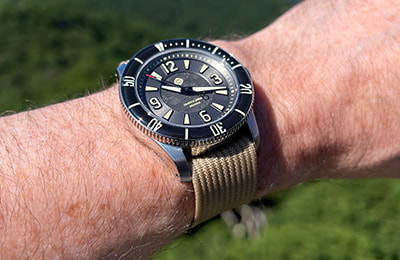

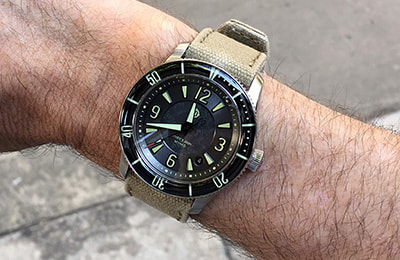

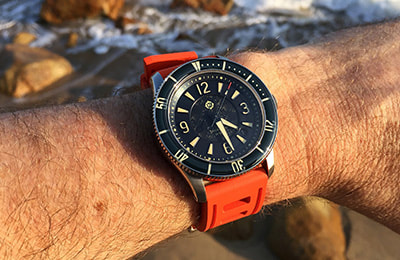

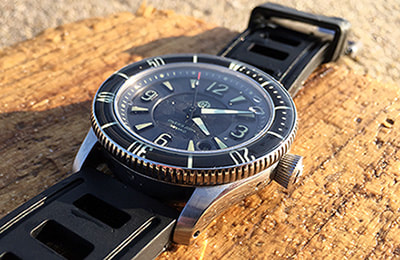

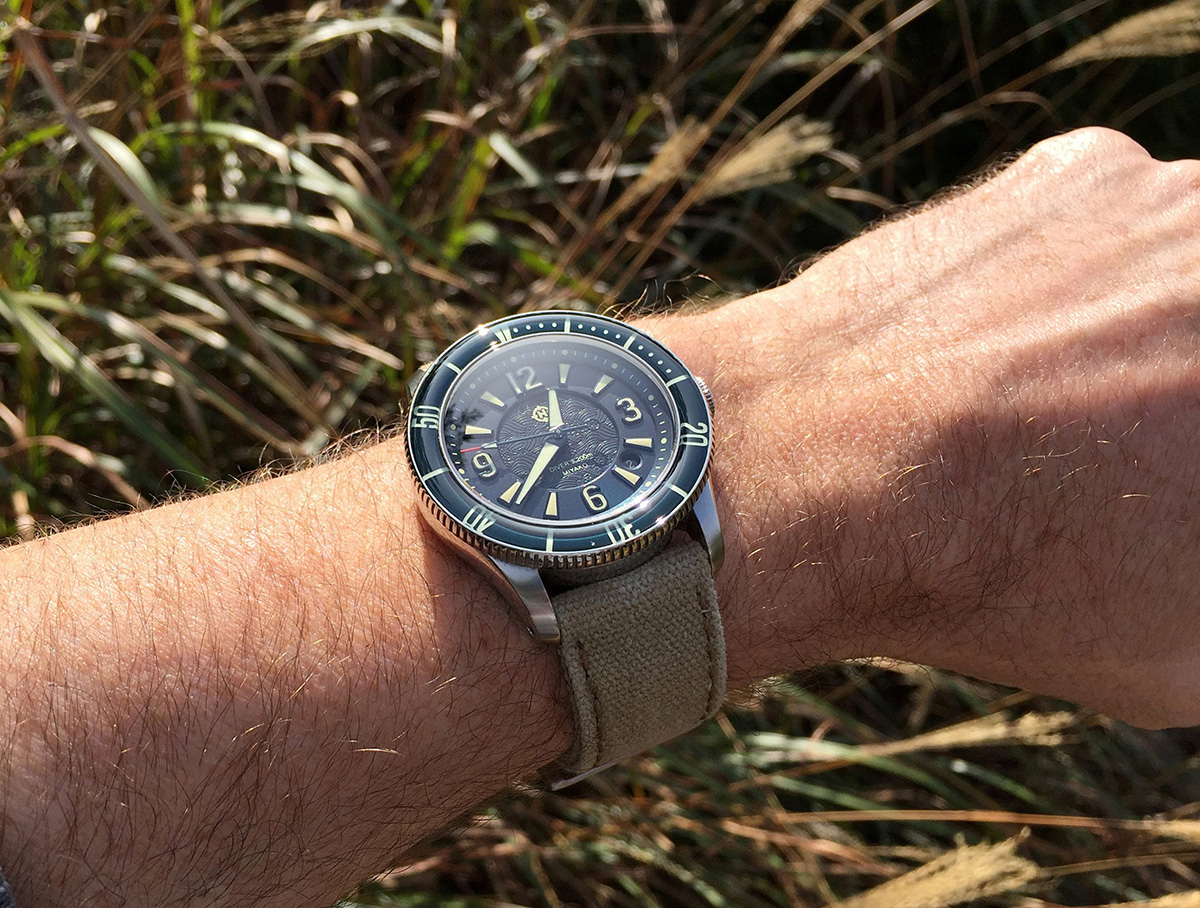

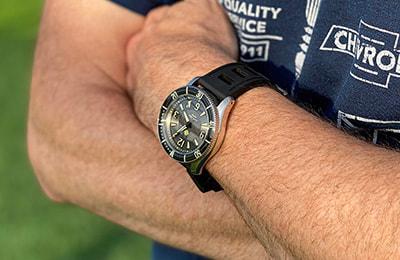

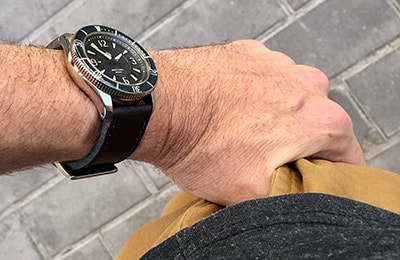

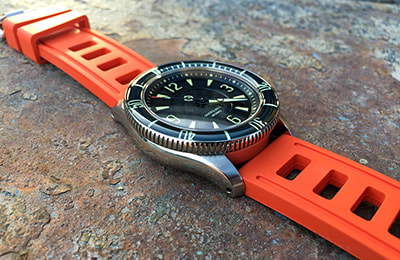

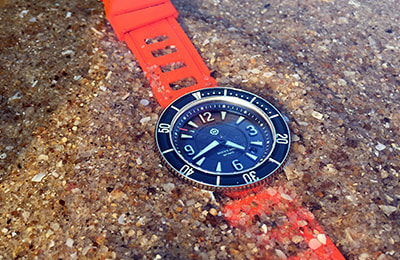

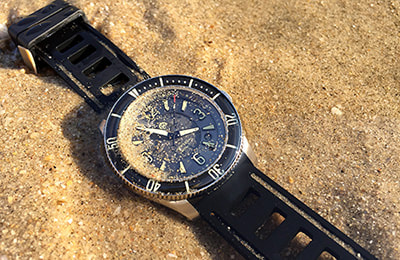

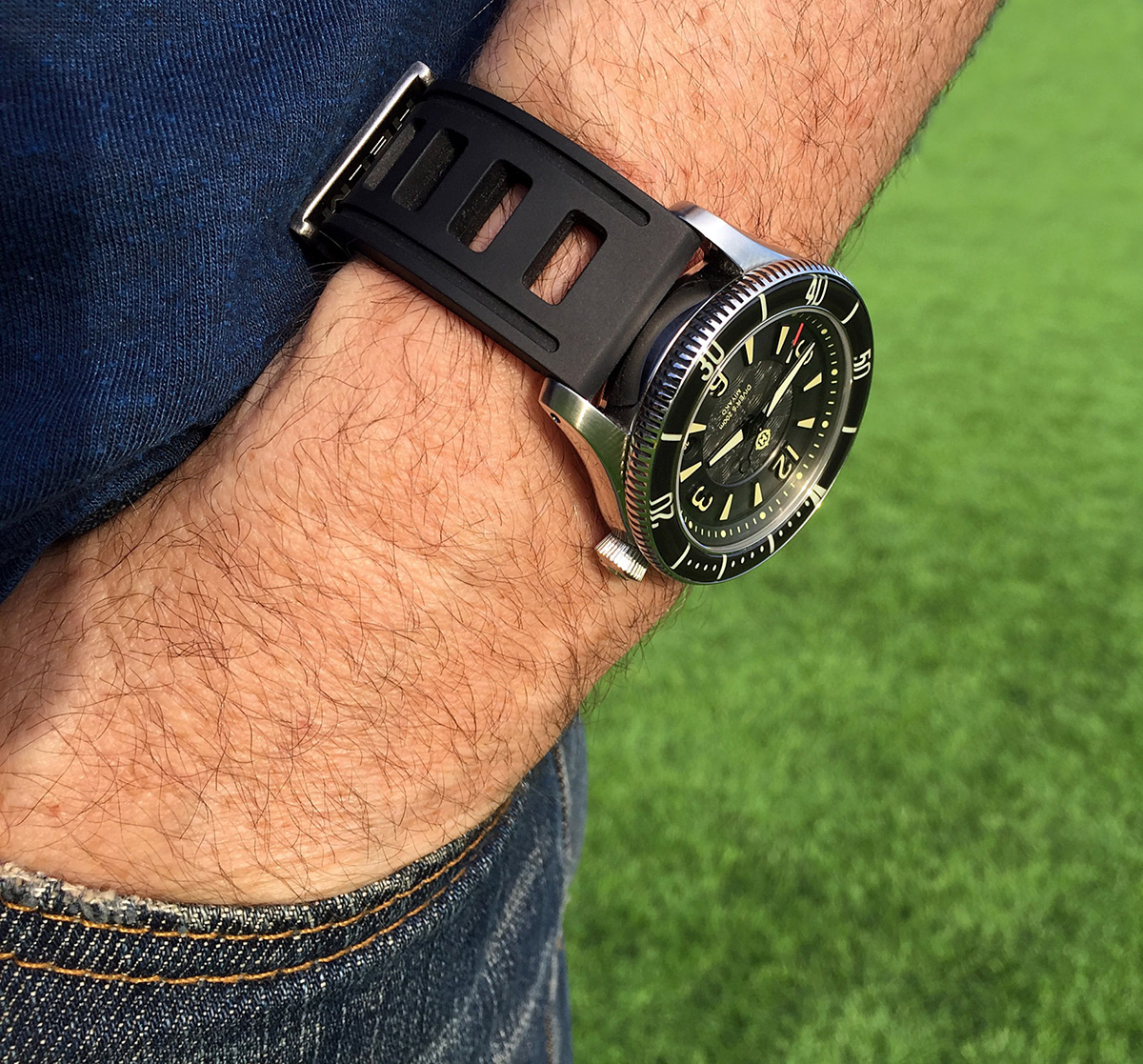

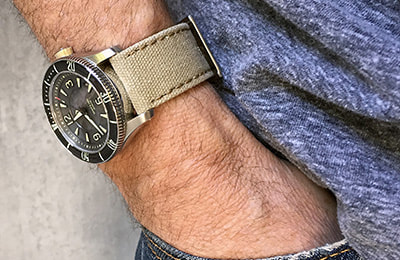

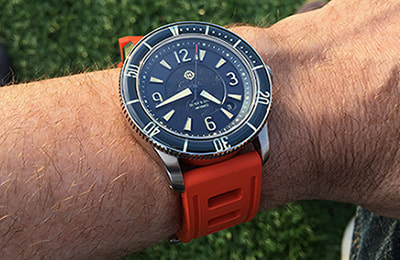

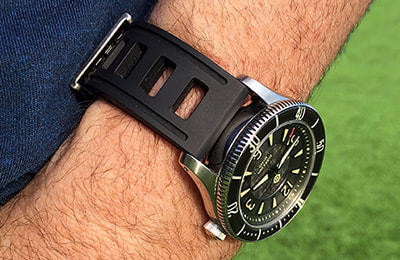

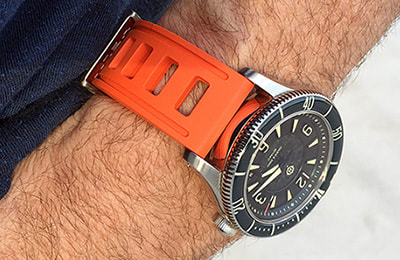

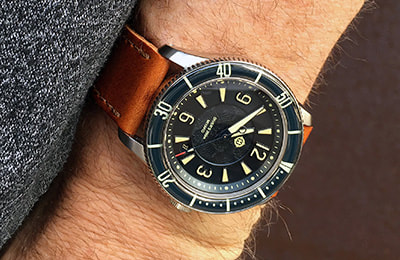

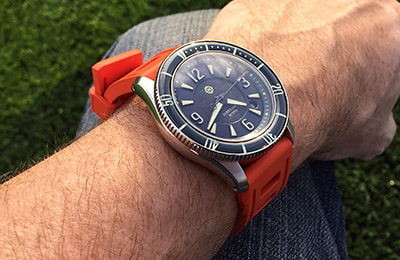

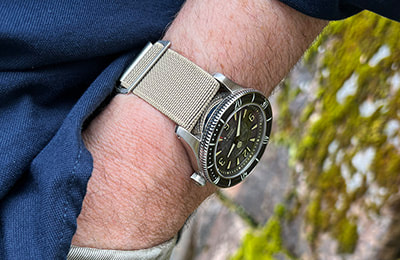

  • The rubber, canvas and leather straps pictured in some photos at left, as well as the NS1 and NS3 nylon straps, are available separately and at a discount when purchased with a watch.

Manual:
Download Manual
File Size: 2455 kb
File Type: pdf
Download File
US$375.00 + Shipping

Thanks for your interest in the Miyako! As with our other watches, the Miyako is sold on a waiting list basis to help us manage sales volume. To join the waiting list, please
click here or submit the form below.

When we reach your number on the list, we'll contact you
with instructions to complete the purchase.

If there are more than a thousand customers on the list, we also conduct regular "lottery" sales during which we draw names at random from the entire waiting list.


   JOIN  MIYAKO  WAITING  LIST:
HOW LONG IS THE WAIT?

To check your position on the waiting list, enter the email address you used to join the list and click 'GO!'


Your position on the list:



Note: To be removed from a particular waiting list, please email us rather than clicking "unsubscribe." Unsubscribing will prevent you from receiving any further emails from us (in effect, removing you from all waiting lists).
